Brief Introduction

Introduction

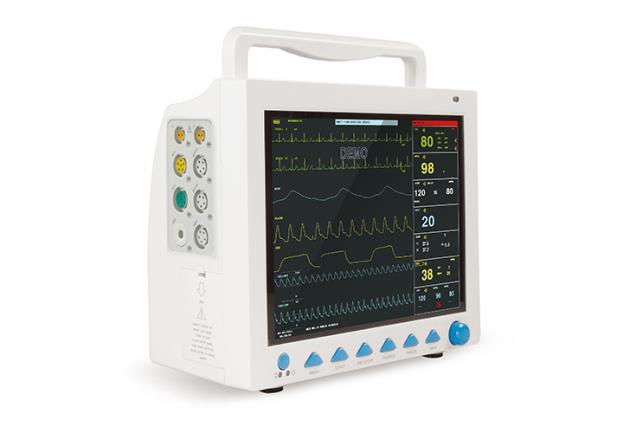

The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.

This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

Functions

Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP

1)                      ECG                        Heart rate(HR)

                                                ECG waveform

                                                Arrhythmia and ST-segment analysis

2)                      RESP                        Respiration rate(RR)

                                                Respiration waveform

3)                      SpO2                        Oxygen saturation(SpO2)

                                                Plethysmogram(PLETH) waveform

                                                Pulse rate(PR)

                                                Bar graph

4)                      NIBP                        Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)

5)                      TEMP                        T1, T2, TD

6)                      IBP(optional)                CH1SYSDIAMAP

CH2SYSDIAMAP

IBP waveform

7)                      CO2(optional)                EtCO2

InsCO2:Inspired Minimum CO2

AwRR:Air Way Respiration

It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
